Product Details
＋

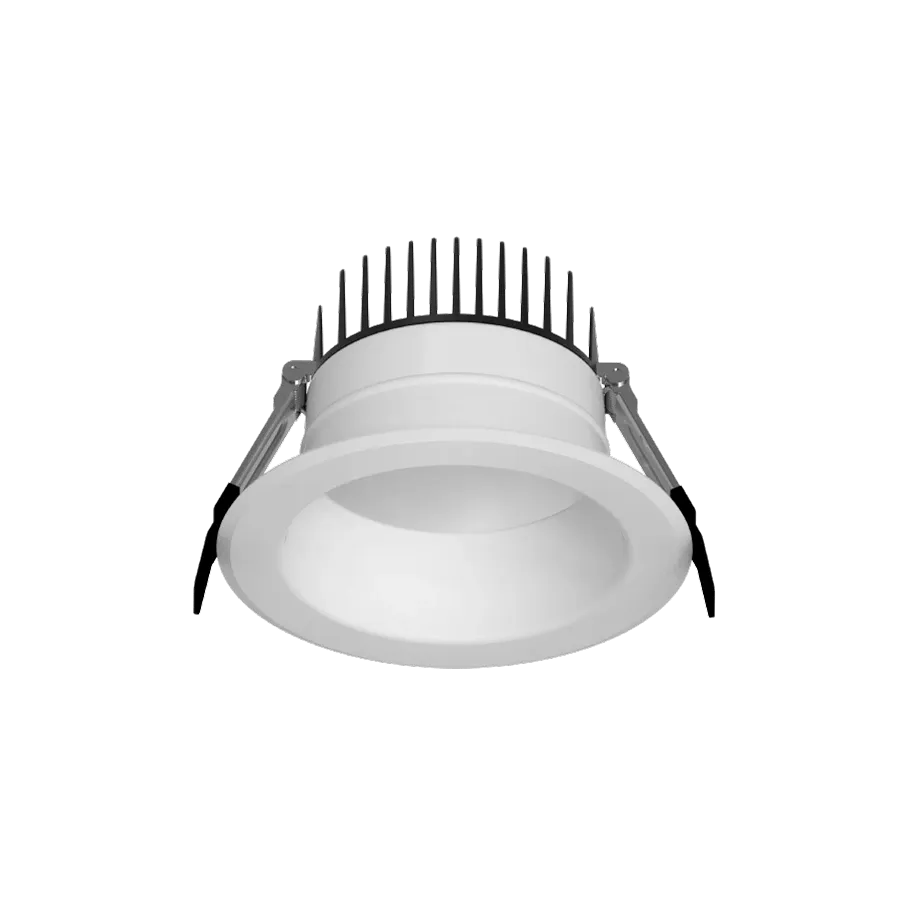

4" 20W Commercial Downlight Hi Output
The CRXLED family is a high output and flexible commercial downlight system that covers a wide range of applications without the need for stocking multiple SKUs.
- CCT Selectable and Lumen Adjustable switches for greater stocking convenience and control

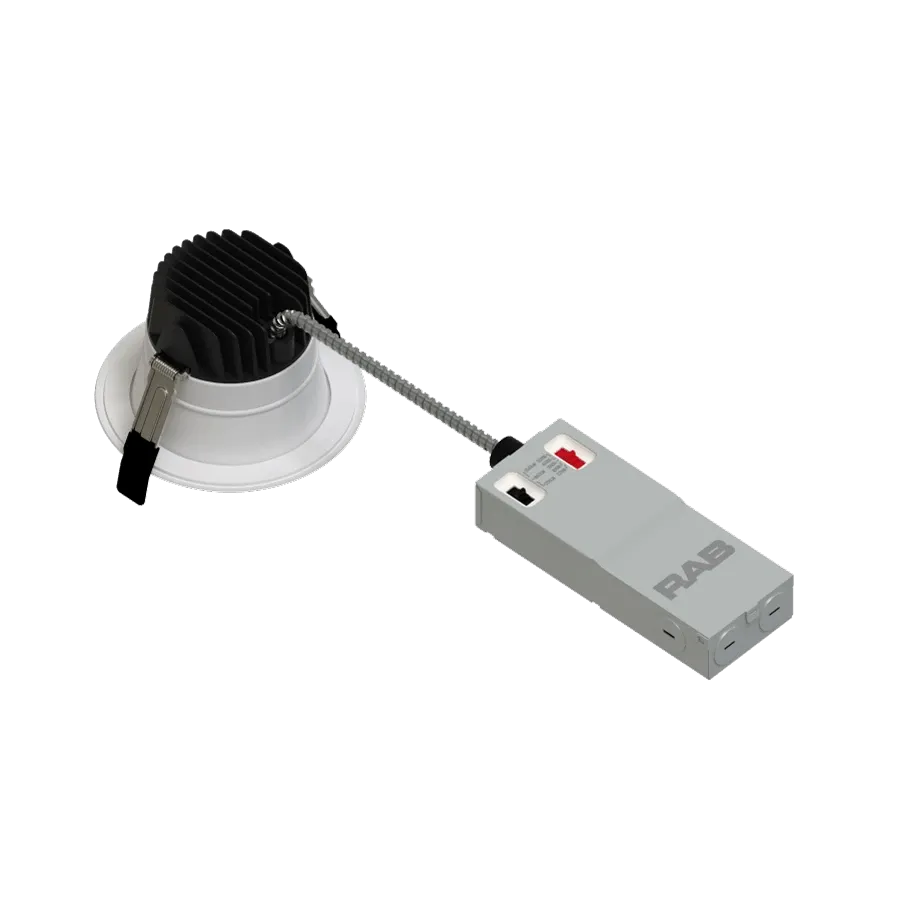

- Comes with a remote driver with built-in junction box and quick disconnect; Eliminates the need for a traditional, multi-piece fixture setup
- Ideal for new construction, remodel, and retrofit applications
- Interchangeable trims available in matte black, brushed nickel, and bronze
- Universal Dimming that can be used on 120V Triac and ELV Dimmer or 0-10V dimming
Spec Sheets
Info
| Product Type | Commercial Downlight |
| Wattage | 12/16/20W |
| Lumen | 1200/1600/2000lm |
| Color Temp. | 2700K/3000K/3500K/4000K/5000K |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Enclosure Material | Metal |
| Finish | White |
| Style | Smooth Trim |
| Size | 4" |
| Shape | Round |
| Beam Angle | 85°±10° |
Additional Info
| Driver | Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.19A, 208V: 0.10A; 240V: 0.07A, 277V: 0.09A |
| THD | ≤20% |
| Power Factor | ≥0.9 |
| Dimmable | Yes, dimmable down to 10% on compatible 0-10V or TRIAC/ELV dimming systems. See Dimmer Compatibility List. |
| Input Voltage | 120-277V |
