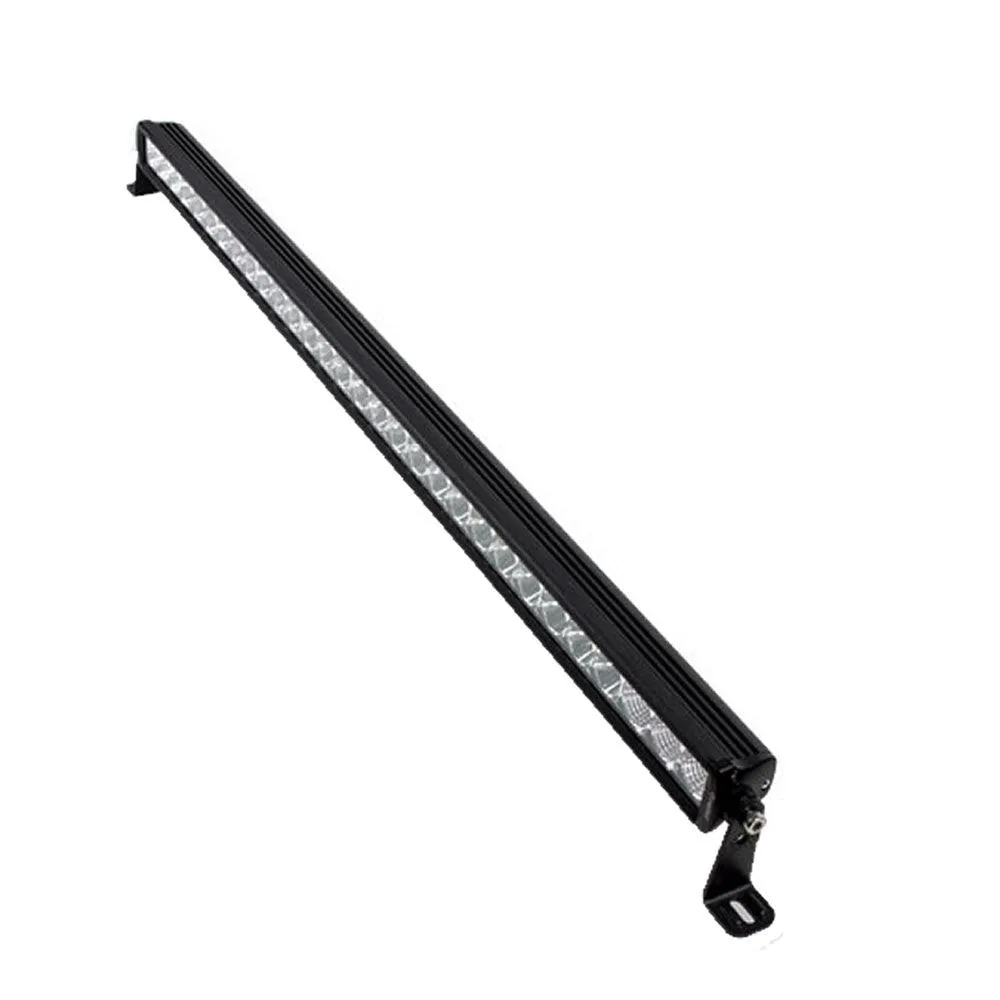

Single Row Slimline LED Light Bar - 39-1/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 90W (30–3W OSRAM LEDs)
• Raw Lumens: 7200
• LUX @ 10M: 2920
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 39"
• Brackets turned outward – 41"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to 60°C
• Current Consumption: 4.9 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 39.25"
• Housing: Black
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 5"H x 5"W x 49"L WT: 7.5 lbs
• UPC: 086429317387
