Product Details
＋

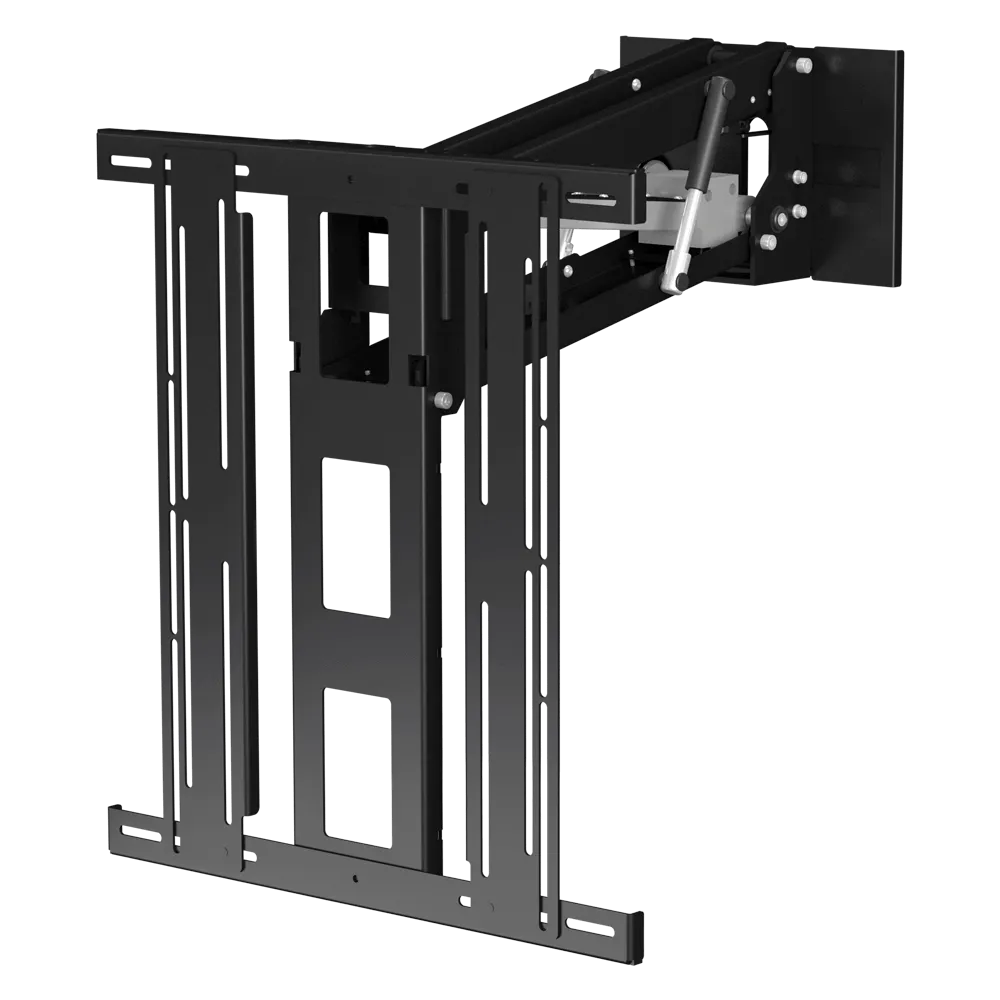

The Electric Advance and Drop TV Wall Mount is a one of a kind bracket designed to move a flat screen vertically to a more desirable viewing height.
The down and out movement make this ideal for mounting a TV over a fireplace as the EAD moves forward to clear a mantle piece and then drops down for a more favourable viewing position. A truly unique and creative solution.
- Unique Forward and Drop (Out and Down) Motion
- Removable Magnetic Covers to Create a Neat Finish
- Simple Hook-on Style Screen Mount (As found on the PS Bracket range)
- Perfect For Mounting TV Above Fireplaces
- A simple, single point tilt adjustment to ensure that the screen is always parallel to the wall
- Full Cable Management
- Smooth Quiet Motion
Specifications:
| PRODUCT CODE | EAD |
|---|---|
| BOLT PATTERN (VESA) | VESA200 UP TO 600 X 500 |
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DEPTH FROM WALL | 140MM (5.5") |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 |
| MAX DROP FROM IN POSITION | 537MM (21.1") |
| MAX EXTENSION FROM WALL | 557MM (21.9") |
| MAX WEIGHT | 60KG (132LBS) |
| MOVEMENT TYPE | MOTORISED |
| SCREEN SIZES (APPROX) | 50"-80" |
