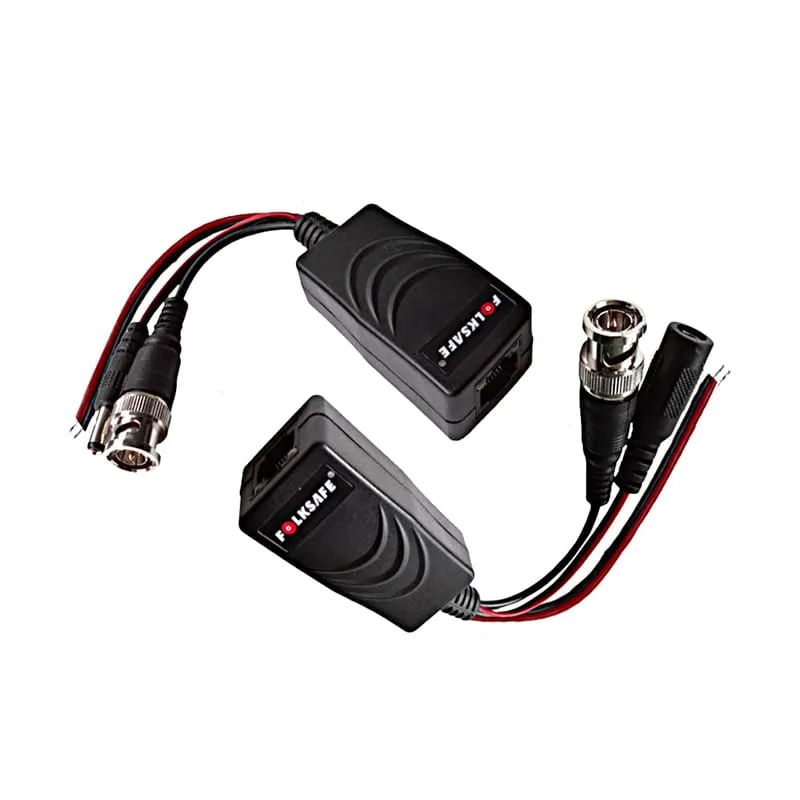

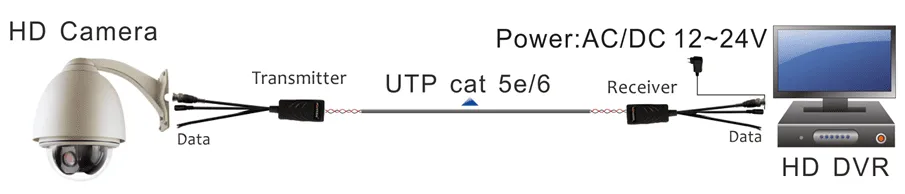

The FS-HD4301VPD is a video, power, data transmitter and receiver that allows the transmission of real-time CCTV HD video,power and data signal via cost effective unshielded twisted paired (UTP) cable.

The FS-HD4301VPD is compatible with all HD-TVI, HD-CVI and AHD analog cameras. Used in pairs, the FS-HD4301VPD eliminates costly and bulky coaxial cable.

FEATURES

• 1- CH Passive Video & Power Balun (12V/24V DC/AC)
• Support TVI, CVI and AHD high resolution analogue camera
• Up to 440m for HD-CVI Dahua 720P camera
• Up to 240m for HD-CVI Dahua 1080P camera
• Up to 230m for HD-TVI Hikvision 720P camera
• Up to 250m for HD-TVI Hikvision 1080P camera
• Up to 320m for HD-TVI AHD 720P camera
• Up to 330m for HD-TVI AHD 960P camera
• Built-in TVS for surge protection
• Lightning protection design Grade:III
• Wave Filter Design, Anti-Static Design
• Exceptional interference rejection
• 60 dB crosstalk and noise immunity
• ABS Engineering Plastic Housing

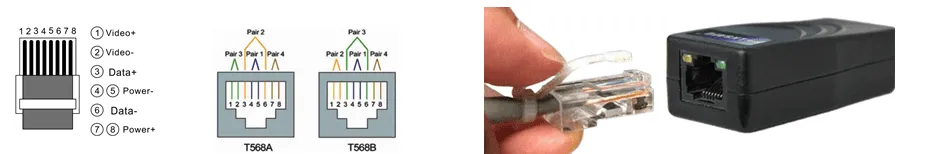

• RJ45 jack for UTP cable
