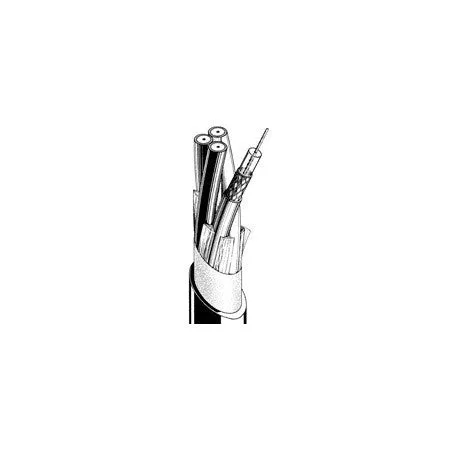

Canare V-1.5C Series Multichannel 75 Ohm Video Coaxial Cable

Micro coax, 31AWG Canare Ultra-Mini V-Series!

Offers excellent flexibility and reduced overall jacket OD. Specifically designed for very short run RGB fan-out cables, where robust pulling strength and high bandwidth is not a key factor. Terminate with Canare's 75 ohm BNC Plug BCP-C1 (Features a Solder Pin and Crimp Sleeve) HD15 VGA connector.

Features:

• Structural Return Loss >=20dB to 2GHz
• Flexible Center Conductor
• Channel ID Colors
• Special Jacket Fillers
• Dielectric strips away clean from Conductor
• 2.2 ns. Differential Delay

Applications:

• Component Analog Video
• Video Projectors
• Video Walls
• Studio Tie Lines
• CG/CAD Workstations
